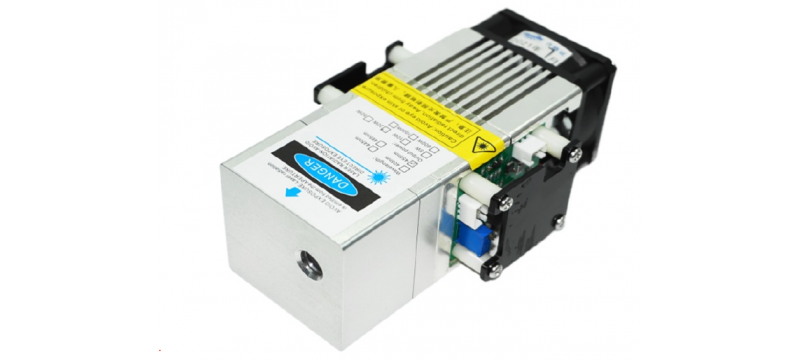

450nm 20W Laser Processing Head
The LH0450P0020S01 generate laser beam with short wavelength, which helps the laser processing head process more materials in comparison with others. The concentrated small spot size make the laser head performs excellent in laser cutting.
Features:
- Free space design with air cooling with fan.

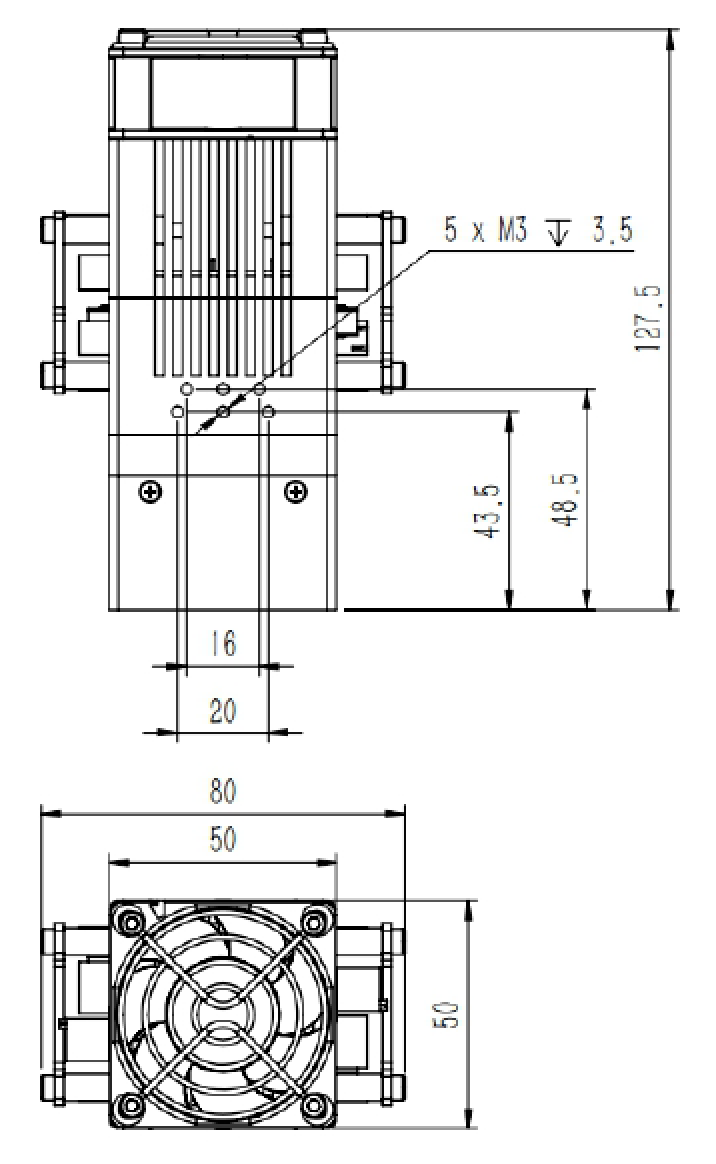

- Compact size 50*80*130 (mm) with fan and driver board.
- Light weight 200g.
- High flexibility that could be customized by remove/increase laser source to reach operation output power 5~35W.
Electrical Properties:
- Input voltage: DC 12-24V.
- Modulation control voltage: Analog 0-5V ; >2V turn on.
- Modulation frequency 1K Hz.
- Trace laser control voltage: DC 0-5V.
Optical Properties:
- Output power: 30W.
- Spot size: 60um*80um.
- Laser beam wavelength: 450 ±5 nm.
- Working distance: 40mm.
Others:
- IEC Safety Class: Level 4.
- Operation temperature: -30-40℃.
- Made in Taiwan.
Product Tab | |||
|
450nm 20W Laser Processing Head
$590.0
10 or more $490.0
- Deliver Time: Available, 7~21 Days
- Product ID: LH0450P0020S01
- Weight: 0.20kg
- Dimensions: 130.00mm x 80.00mm x 50.00mm
Note:
We also support custom made service as your requirements. For more details, please contact us. |
